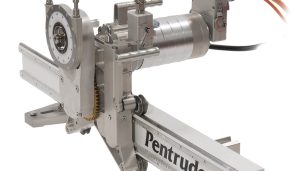

Pentruder Väggsåg 6-10HF

Pentruder Väggsåg 6-10HF

Saw blade ⌀ max
1200 mm(48″)
Recommended HF-motors
15 kW
Cutting depth max
515 mm (20.6″)
Max output torque
165 Nm

Light weight, easy to use and efficient wall saw. Max blade: Ø 1200 mm Max cutting depth: 515 mm Max output power: 18 kW Single speed gearbox.

Teknisk data

Info

Start blade max diameter 800 mm (40.0″)
Mechanical gears 0
Max size HF Motor 18 kW (24 HP)
Has detachable motor Yes
Quick change blade coupling Yes, HF
Weight saw head 20.0 Kg (44.0 Pounds)
Weight recommended HF Motor 13.0 Kg (28.6 Pounds)

Passar med

15 kW HF motor Our smallest HF-motor, ideal for the Pentruder MD1 Core drill and 6-10HF Wall saw.

18kW HF motor Versatile motor. Recommended for the Pentruder 6-12HF wall saw.

Pentpak 427 Operate a full range of Pentruder HF-equipment simply by connecting the same Pentpak, remote control, motor and cables to a wallsaw, a wire saw or a core drill. It all fits together and gives unsurpassed flexibility.

Cable remote control Cable remote control with ergonomic layout with joystick and rocker switches for smooth operation and reduced operator hand fatigue.

Wireless remote control Same proven layout as the cable remote for easy transition. Ergonomic layout with joystick and rocker switches for smooth operation and reduced operator hand fatigue.
