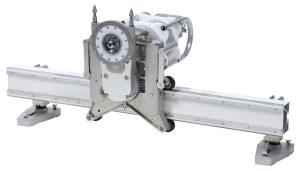

Pentruder 6-12HF
-
Pentruder Väggsåg 6-12HF
- Saw blade ⌀ max
- 1200 mm(48″)
- Recommended HF-motors
- 18 kW
- Cutting depth max
- 515 mm (20.3″)
- Max output torque
- 245 Nm
A versatile and strong medium size wall saw. Max blade: Ø 1200 mm Max cutting depth: 515 mm Max output power: 18 kW 2-speed gearbox.
Teknisk data
Info |
|
|---|---|
| Start blade max diameter | 800 mm (40.0″) |
| Mechanical gears | 2 |
| Max size HF Motor | 18 kW (24 HP) |
| Has detachable motor | Yes |
| Quick change blade coupling | Yes, HF |
| Weight saw head | 21.0 Kg (46.0 Pounds) |
| Weight recommended HF Motor | 16.5 Kg (36.0 Pounds) |
Passar med
15 kW HF motor Our smallest HF-motor, ideal for the Pentruder MD1 Core drill and 6-10HF Wall saw.
18kW HF motor Versatile motor. Recommended for the Pentruder 6-12HF wall saw.
Pentpak 427 Operate a full range of Pentruder HF-equipment simply by connecting the same Pentpak, remote control, motor and cables to a wallsaw, a wire saw or a core drill. It all fits together and gives unsurpassed flexibility.
Cable remote control Cable remote control with ergonomic layout with joystick and rocker switches for smooth operation and reduced operator hand fatigue.
Wireless remote control Same proven layout as the cable remote for easy transition. Ergonomic layout with joystick and rocker switches for smooth operation and reduced operator hand fatigue.
Manual och instruktion
https://www.sdcab.se/wp-content/uploads/2022/05/Manual-pentruder-HF-vaggsagar.pdf
https://www.sdcab.se/wp-content/uploads/2022/05/Kortinstruktion-Pentruder-HF-vaggsag.pdf
