Pentruder väggsåg 8-20IQ

Pentruder väggsåg 8-20IQ

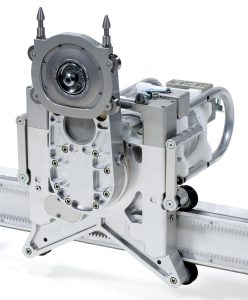

Pentruder Väggsåg 8-20iQ

Saw blade ⌀ max

2000 mm(78″)
Recommended HF-motors
22 kW
Cutting depth max
915 mm (36.0″)
Max output torque
480 Nm

High torque wall saw for big blades and tough aggregates. Max blade: Ø 2000 mm Max cutt. depth: 915 mm Max output power: 27 kW 4-speed gearbox.

Tekniskt data

Info

Start blade max diameter 1000 mm (40.0″)
Mechanical gears 4
Max size HF Motor 27 kW (37 HP)
Has detachable motor Yes
Quick change blade coupling Yes
Weight saw head 25.5 Kg (56.0 Pounds)
Weight recommended HF Motor 18.0 Kg (40.0 Pounds)

Passar till

15 kW HF motor Our smallest HF-motor, ideal for the Pentruder MD1 Core drill and 6-10HF Wall saw.

18kW HF motor Versatile motor. Recommended for the Pentruder 6-12HF wall saw.

22kW HF motor Versatile and strong. For the Pentruder CBK, 8-20HF and 8-20iQ wall saws and 3P8 HF wire saw.

27kW HF-motor Our strongest HF-motor suitable for extra tough jobs with the 8-20iQ.

Pentpak 427 Operate a full range of Pentruder HF-equipment simply by connecting the same Pentpak, remote control, motor and cables to a wallsaw, a wire saw or a core drill. It all fits together and gives unsurpassed flexibility.

Cable remote control Cable remote control with ergonomic layout with joystick and rocker switches for smooth operation and reduced operator hand fatigue.

Wireless remote control Same proven layout as the cable remote for easy transition. Ergonomic layout with joystick and rocker switches for smooth operation and reduced operator hand fatigue.

Manual och instruktion

https://usercontent.one/wp/www.sdcab.se/wp-content/uploads/2022/05/Svenska-manual-pentruder-HF-väggsågar.pdf?media=1651777906

https://usercontent.one/wp/www.sdcab.se/wp-content/uploads/2022/05/Svenska-Kortinstruktion-Pentruder-HF-väggsåg.pdf?media=1651777906
